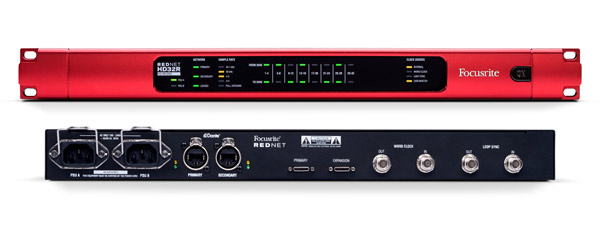

Focusrite RedNet HD32R

The Focusrite Pro RedNet HD32R  gives you a 32 Channel Bridge that allows you to connect your RedNet network to Pro Tools. Sporting redundant power supplies and redundant networking, the RedNet HD32R offers maximum stability and peace of mind. So it's perfect for both your live sound and broadcasting applications.

Additionally, the RedNet HD32R is extremely easy to integrate with your Pro Tools rig. By using a simple Ethernet cable, you can take up to 32 channels of audio. Then easily bridge them straight into Pro Tools via DigiLink. For even larger track counts, you can also connect multiple units depending on your application. Thanks to the RedNet HD32R, you can sync your entire RedNet system to any incoming digital clock or word clock.

Above all, the RedNet HD32R 32 Channel Bridge is the perfect solution for getting your audio tracks into Pro Tools HD!

Features.

32×32 Pro Tools | HD I/O for Dante audio-over-IP networks at up to 96kHz (16×16 at 192kHz)

Primary and Expansion DigiLink mini connections

Up to 24-bit, 192kHz sampling rates

AES67 compliant

Dual power supplies and network connections with full power and network redundancy including locking connectors for maximum reliability

Word Clock and Loop Sync I/O for increased flexibility and integration with other Pro Tools | HD hardware
Comprehensive remote control and remote signal metering through RedNet Control

Brainworx bx_console Focusrite - exclusive plug-in that faithfully captures the sound, feel and styling of the original Focusrite ISA 110 Equaliser and ISA 130 Dynamics Modules.



specifications


Digital Performance

Supported Sample Rates

44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz (-4 / -0.1 / 0.1 / 4.167) at 24 bit


Clock Sources

Internal, Word Clock, Loop Sync (master or slave) or from Dante Network Master

External Word Clock Range

Nominal sample rate ±7.5


Channel Count

32x32 at up to 96kHz sampling rate, 16x16 at 176.4 and 192kHz
Rear Panel Connectivity

Primary Port

1 x Mini DigiLink

Expansion Port

1 x Mini DigiLink

Word Clock Input

1 x BNC 75O port (switchable termination)


Word Clock Output

1 x BNC 75O port


PSU

2 x IEC Inputs with retaining clips

Network

2 x etherCON NE8FBH-S, also compatible with standard RJ45 connectors
Front Panel Indicators
