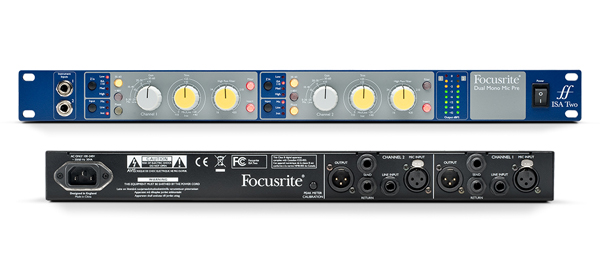

Focusrite ISA Two

Two channels of classic Focusrite mic pres

Focusrite's ISA Two brings together a totally independent pair of classic ISA microphone preamps from the original ISA 110 module, combining the best of traditional solid-state electronics with the original input transformer specified by Rupert Neve - the Lundahl LL1538.

Each mic pre has the option of mic, line or the front-panel instrument input, with variable input impedance to ensure you are getting the best performance from the source. Up to 60dB of gain is available on the first four-position rotary and gain range switches, with a further +20dB of continuously variable trim, meaning a huge 80dB of gain is available should it be required. The high-pass filter features variable cut-off frequency between 16 and 420Hz. A pair of 8-segment LED meters show peak signal level in dBFS, while a rear-panel pot allows calibration to suit your A-D converters. Rear-panel insert points allow the use of inline processors such as compression.


Features

Front

1/4" instrument input

Variable input impedance - Low, ISA 110, Medium, High

Input selection - Mic, Line, Instrument

0 - 30 dB/30 - 60 dB gain switch

Phantom power switch

Phase invert switch

0 - 60 dB gain in 10 dB steps

0 - +20 dB continuously variable trim

Variable high-pass filter with on/off switch

Insert point on/off switch

Eight-LED user-calibrated level meters


Rear

XLR-F mic inputs

1/4" TRS line inputs

1/4" TRS Sends

1/4" TRS Returns

XLR-M line output

Single peak meter calibration dial
